01

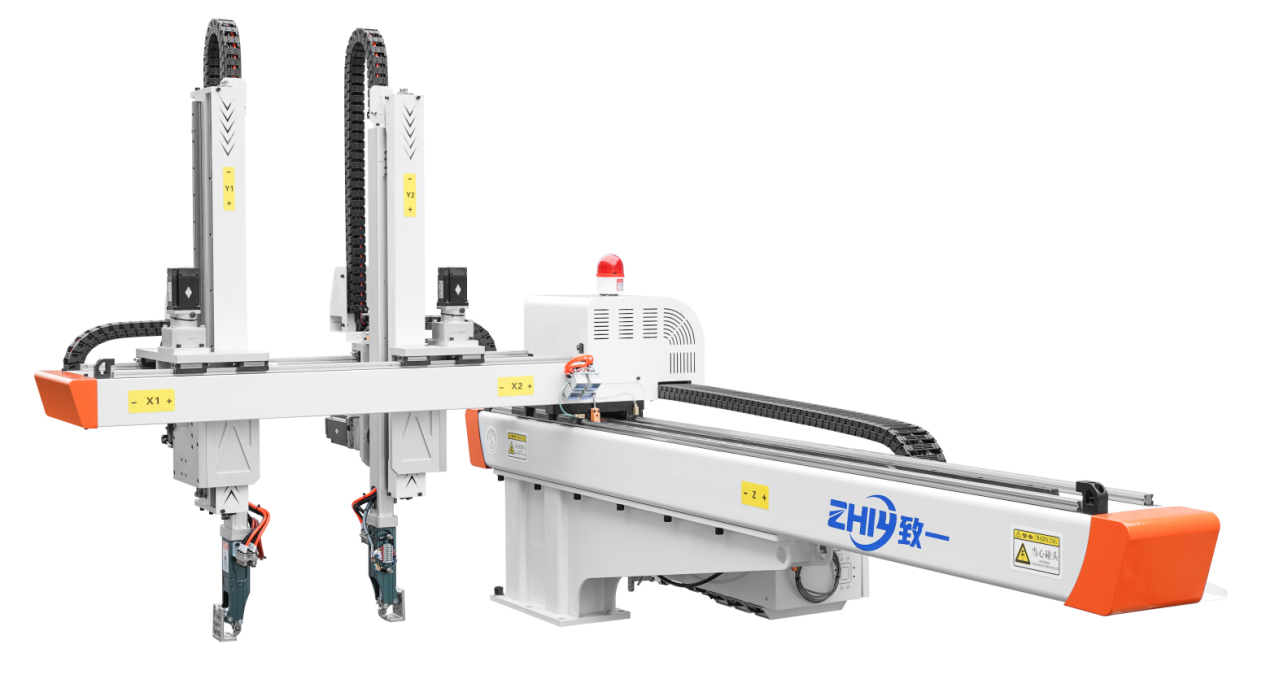

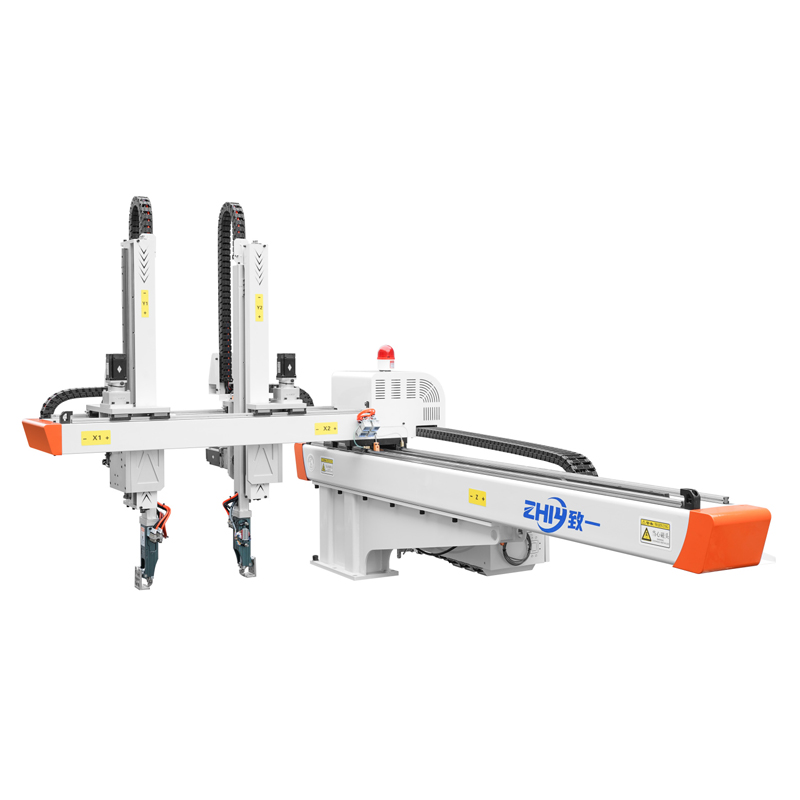

Injection Molding Machines Robots 250-350T

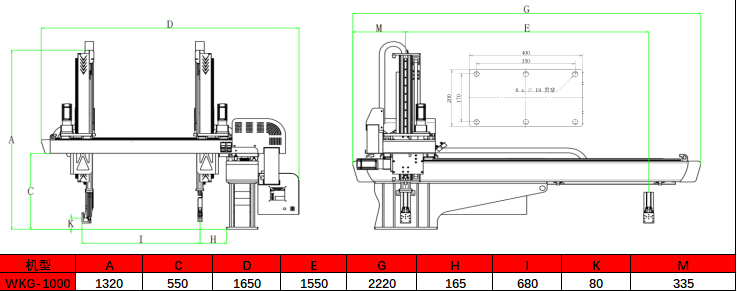

Product Parameters
| Model | A | C | D | E | G | H | I | K | M | ||||||
| WKG-1000 | 1320 | 550 | 1650 | 1550 | 2220 | 165 | 680 | 80 | 335 | ||||||
| Model | Applicable injection molding machine（TON） | Up and down travel (MM) | Front and rear travel (MM) | Horizontal travel (MM) | Machine net weight (KG) | Max load (KG) | |||||||||
| WKG-1000 | 250T-350T | 1000 | 920 | 1700 | 295 | 8.-12. | |||||||||
Product Video
Product Advantages
1. High-precision motion control: The advanced servo motor drive system is used to ensure that the robot maintains extremely high positioning accuracy in complex three-dimensional space movements, and the error is controlled within a very small range, effectively improving the stability of product quality.
2. Quick response and efficient production: The optimized motion algorithm is combined with the high-speed transmission device, so that the robot can quickly complete the pick-and-place action, greatly shorten the production cycle, and meet the speed requirements of large-scale production.
3. Stable and reliable mechanical structure: The overall frame is made of high-strength aluminum alloy and high-quality steel. After precision processing and strict quality inspection, it has excellent load-bearing capacity and anti-deformation performance, ensuring long-term stable operation under high-intensity working environment.
4. Flexible installation and debugging: There are multiple installation methods designed, which can be easily adapted to injection molding machines of different brands and models. At the same time, it is equipped with an intelligent debugging system, which is easy to operate and greatly shortens the equipment installation and debugging cycle.
5. Humanized operation interface: Equipped with an intuitive and easy-to-use touch screen control system, supporting multi-language operation interface, it is convenient for operators from different countries and regions to quickly get started and easily set and monitor parameters.
6. Intelligent fault diagnosis and early warning: built-in intelligent sensors monitor the operating status of the equipment in real time. Once an abnormal situation occurs, an alarm will be issued immediately and the fault location and cause will be displayed, which is convenient for rapid maintenance and reduces downtime.
Design highlights
1. Streamlined appearance design: not only conforms to modern industrial aesthetics, but also takes into account the principles of aerodynamics, effectively reduces air resistance during high-speed movement, and is easy to clean and maintain, keeping the production environment clean.
2. Modular component design: The modular design of each component not only improves the assembly efficiency during the production process, but also makes the later maintenance and replacement extremely convenient, greatly reducing maintenance costs and downtime.
3. Strong scalability: rich interfaces are reserved to facilitate the addition of other automated equipment such as visual inspection systems and material conveying systems according to actual production needs, so as to realize the intelligent upgrade of the production line.
Application scenarios
Widely used in many industries such as automobile manufacturing, electronic appliances, household goods, medical equipment, etc., whether it is the production of large automobile bumpers, precision electronic equipment casings, or small daily necessities such as plastic tableware, toys, etc., this manipulator can accurately and efficiently complete the work of picking up, placing, stacking, etc. after injection molding, effectively improving the automation level and production efficiency of the entire production process.
Why Choose Us
Technology R&D
Factory
010203040506070809101112131415
FAQ
1. Is this robot suitable for 300T injection molding machines?
Yes, this robot is suitable for 250T-350T injection molding machines, and 300T injection molding machines are fully within its adaptation range. Its design fully considers the working characteristics and spatial layout of injection molding machines in this tonnage range. Whether it is the pickup range, motion trajectory or load capacity, it can perfectly match the 300T injection molding machine, ensuring that various tasks are completed efficiently and stably during the production process.
2. How long does it take to install and debug?
Thanks to the modular design and intelligent debugging system of our robot, the installation and debugging process is extremely simple and efficient. Under standard working conditions, it can generally be completed within 1-2 days by professional technicians. During the debugging process, you only need to follow the operation manual step by step, set the relevant parameters through the touch screen, and the robot can automatically calibrate and test, which greatly shortens the preparation time before the equipment is put into use, helping you quickly start efficient production.
3. Is warranty service provided?
We provide a 12-month warranty service for this robot. During the warranty period, if the equipment has non-human quality problems, we will repair or replace the relevant parts for you free of charge. At the same time, we also provide lifelong technical support services. Even after the warranty period, you can contact our professional after-sales team at any time. We will respond as quickly as possible and provide high-quality repair and maintenance services to ensure that your equipment always maintains the best operating condition.
4. How to perform daily maintenance?
Daily maintenance is very simple. First of all, before each use, check whether the bolts of the manipulator's various connection parts are tightened to ensure the stability of the mechanical structure. Secondly, regularly (recommended once a week) clean and lubricate the manipulator's tracks, screws and other moving parts to reduce friction and wear and extend the service life of the equipment. In addition, it is necessary to regularly check whether the electrical connection is firm and whether there are any abnormal conditions such as looseness and short circuit. Through these simple daily maintenance measures, the performance and reliability of the manipulator can be effectively guaranteed and the probability of failure can be reduced.
5. Can it be customized?
We support a certain degree of customized production. If you have special requirements for the robot's travel range, load capacity, appearance color or other functions, just communicate with our sales team in detail before placing an order. We will arrange a professional R&D team to evaluate and design according to your specific needs and provide you with the most suitable customized solution to meet your unique production needs.
