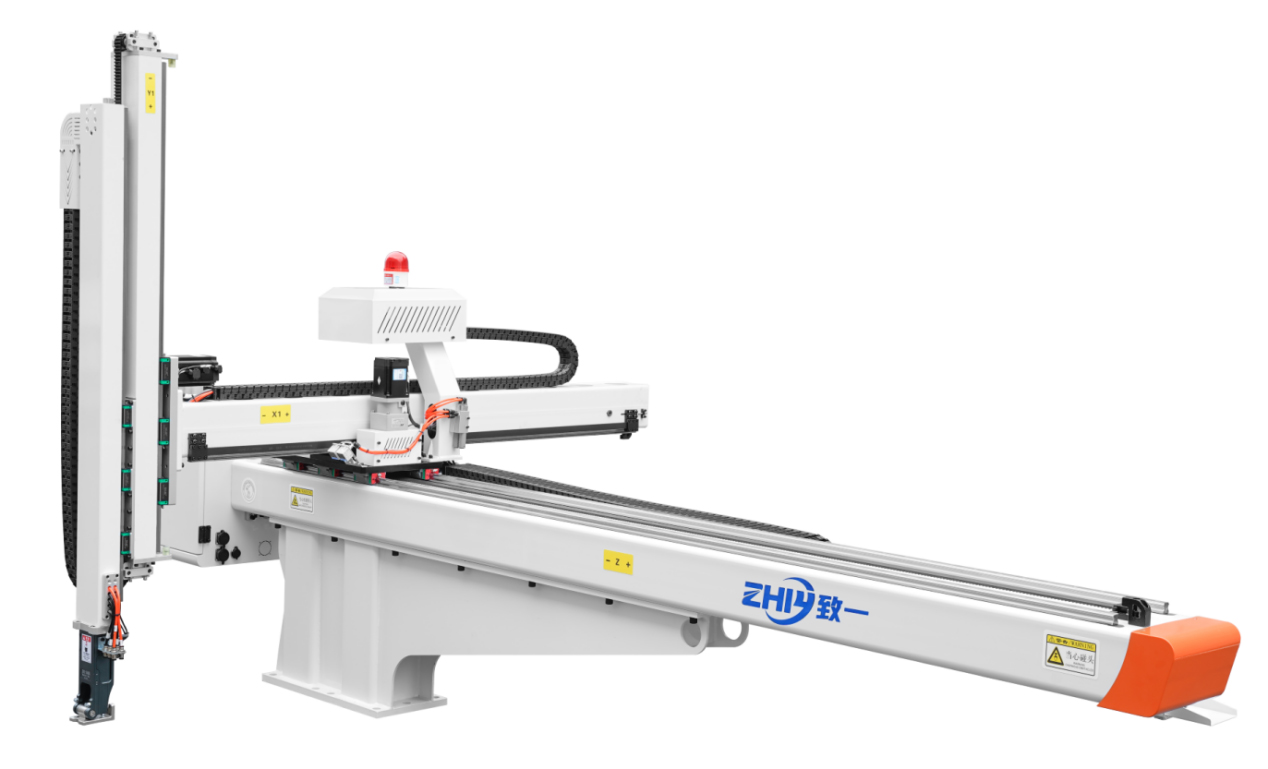

Bull Head 3-Axis Servo Robotic Arm

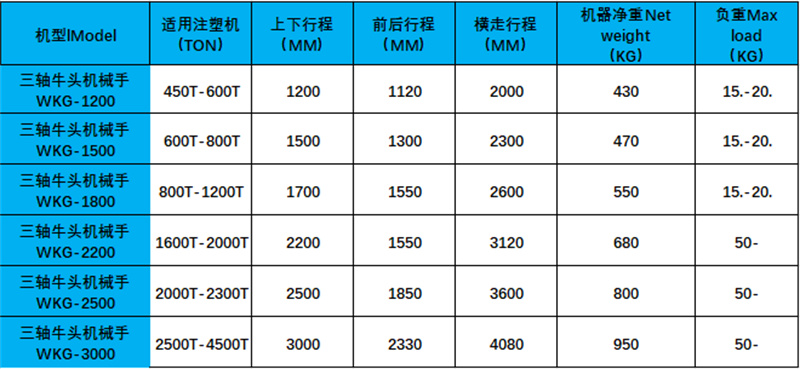

Product Parameters
| Model | A | C | D | E | G | H | I | K | M | ||||||
| WKG-3000 | 2990 | 950 | 3145 | 4080 | 5440 | 460 | 2330 | 380 | 950 | ||||||
| Model | Applicable injection molding machine（TON） | Up and down travel (MM) | Front and rear travel (MM) | Horizontal travel (MM) | Machine net weight (KG) | Max load (KG) | |||||||||
| WKG-3000 | 2500T-4500T | 3000 | 2330 | 4080 | 950 | 50- | |||||||||
Product Video
Product Features
1. Product Forming and Design
The three-axis servo manipulator is made of high-strength aluminum alloy and steel to ensure the stability and durability of the mechanical structure. The compact design of the body and the net weight of only 950kg not only ensure the load capacity of the manipulator, but also reduce the transportation and installation costs. The manipulator's bullhead structure design enables it to maintain high stability within a large stroke range, which is particularly suitable for the complex working conditions of 2000T-2300T injection molding machines.
2. Inspection and Quality Control
Each manipulator undergoes strict factory inspection, including load test, stroke accuracy test and long-term operation stability test. The repeat positioning accuracy reaches ±0.05mm, ensuring high consistency in high-speed production. In addition, the manipulator is equipped with intelligent sensors to monitor the operating status in real time, warn of potential faults in advance, and reduce the risk of downtime.
3. Use and Operation
The operation interface of the manipulator adopts a humanized design, supports PLC programming and touch screen control, and is simple and intuitive to operate. The servo motor drive system responds quickly and runs smoothly, which can achieve fast pickup and precise placement. The robot supports multiple working modes, including single cycle, continuous cycle and manual debugging, to meet the needs of different production scenarios.
4. Application scenarios
The Niutou three-axis servo robot is widely used in large and medium-sized injection molding production lines in the automotive, home appliance, electronics and other industries. Its large stroke design and high load capacity are particularly suitable for picking up large molds and complex products. In addition, the robot's intelligent control system can be seamlessly connected with the injection molding machine to achieve fully automated production, significantly improving production efficiency and product quality.
Why Choose Us
Technology R&D
Factory
010203040506070809101112131415
FAQ
Q1: What is the maximum load capacity of the robot?
A: The maximum load capacity of the Niutou three-axis servo robot is 50kg, which can easily cope with the needs of picking up large molds and complex products.
Q2: What is the travel range of the robot?
A: The robot has an up and down travel of 3000mm, a front and back travel of 2330mm, and a horizontal travel of 4080mm, which is suitable for 2000T-2300T injection molding machines.
Q3: What is the positioning accuracy of the robot?
A: The repeat positioning accuracy of the robot is ±0.05mm, ensuring the consistency and high quality of the product.
Q4: Does the robot support remote monitoring?
A: Yes, the robot is equipped with intelligent sensors, supports remote monitoring and fault warning, and simplifies the maintenance process.
Q5: What are the applicable scenarios of the robot?
A: The robot is widely used in large and medium-sized injection molding production lines in the automotive, home appliances, electronics and other industries, and is particularly suitable for the automated production of large molds and complex products.
